PM Stepper Motor

Hybrid Stepper Motor PM Stepper Motor Other

A permanent magnet (PM) stepper motor offers precise, incremental movement by utilizing a permanent magnet rotor. Known for its reliability and high torque at low speeds, it is ideal for applications requiring accurate positioning, such as 3D printers, robotics, and medical devices.

T0505GN

T0505GN

Diameter 5
Height 10.3
Step Angle 0.15
Drive Voltage 5
Rated Current/Phase 0.26
Drive Mode 2-2 bipolar
T0505N

T0505N

Diameter 5
Height 5.5
Step Angle 18
Drive Voltage 5
Rated Current/Phase 0.26
Drive Mode 2-2 bipolar
T0605N

T0605N

Diameter 6
Height 5
Step Angle 18
Drive Voltage 5
Rated Current/Phase 0.083
Drive Mode 2-2 bipolar
T0809

T0809

Diameter 8
Height 9
Step Angle 18
Drive Voltage 3
Rated Current/Phase 0.143
Drive Mode 2-2 bipolar
T1011

T1011

Diameter 10
Height 11
Step Angle 18
Drive Voltage 5
Rated Current/Phase 0.111
Drive Mode 2-2 bipolar

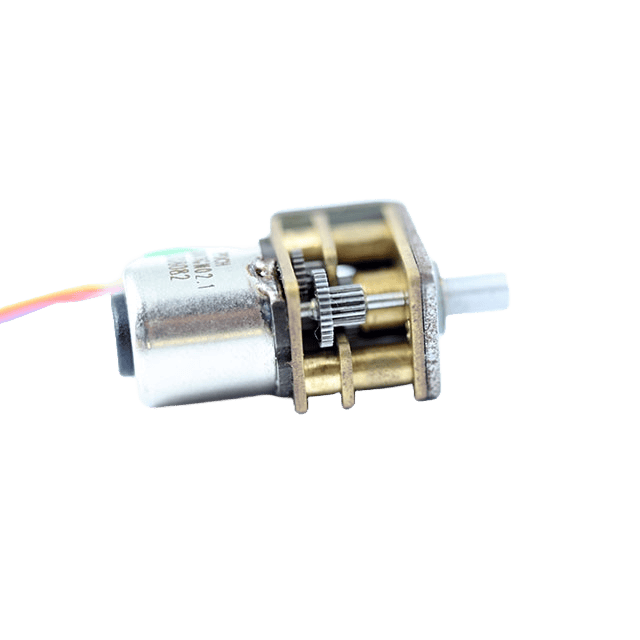

T1011GN

T1011GN

Diameter 10
Height 11
Step Angle 18
Drive Voltage 5
Rated Current/Phase 0.15
Drive Mode 2-2 bipolar

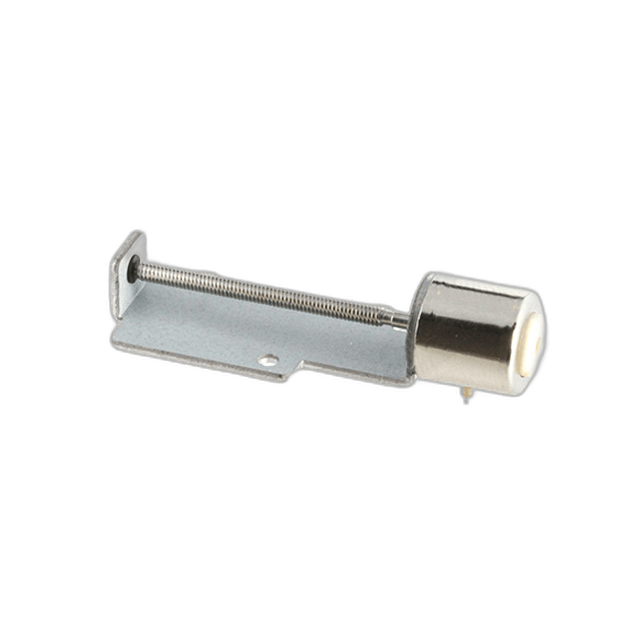

T1011L

T1011L

Diameter 10
Height 33
Step Angle 18
Drive Voltage 5
Rated Current/Phase 0.091
Drive Mode 2-2 bipolar
T1011N

T1011N

Width -
Height 11
Phase -
Step Angle 18
Holding Torque 16
Drive Mode 2-2 bipolar
T1511

T1511

Diameter 15
Height 11
Step Angle 18
Drive Voltage 5
Rated Current/Phase 0.333
Drive Mode 2-2 bipolar
T1511GN

T1511GN

Diameter 15
Height 22.5
Step Angle 18
Drive Voltage 5
Rated Current/Phase 0.17
Drive Mode 2-2 bipolar
T2015N

T2015N

Diameter 15
Height 15.5
Step Angle 18
Drive Voltage 5
Rated Current/Phase 0.794
Drive Mode 2-2 bipolar

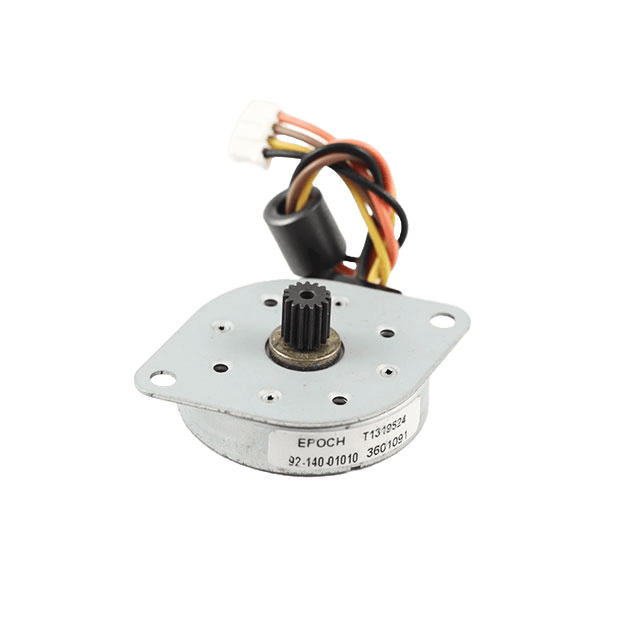

T2509

T2509

Diameter 25
Height 9
Step Angle 3.75
Drive Voltage 12
Rated Current/Phase 0.2
Drive Mode 2-2 bipolar

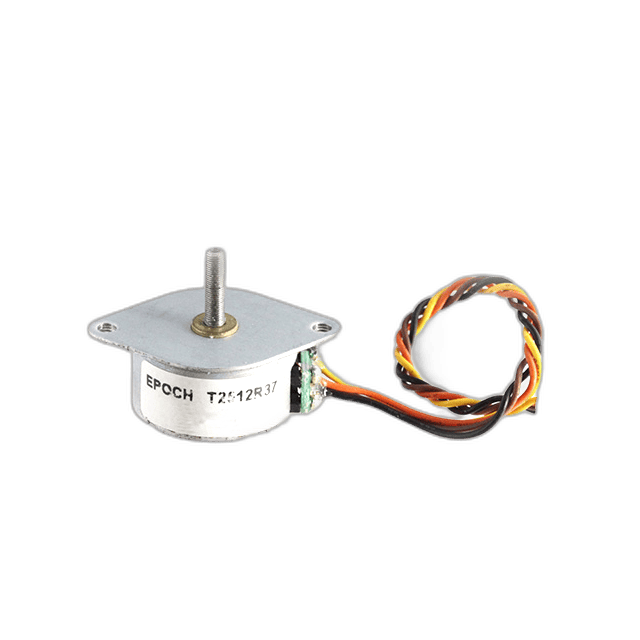

T2512

T2512

Diameter 25
Height 12.6
Step Angle 7.5
Drive Voltage 5
Rated Current/Phase 0.13
Drive Mode 1-2 bipolar

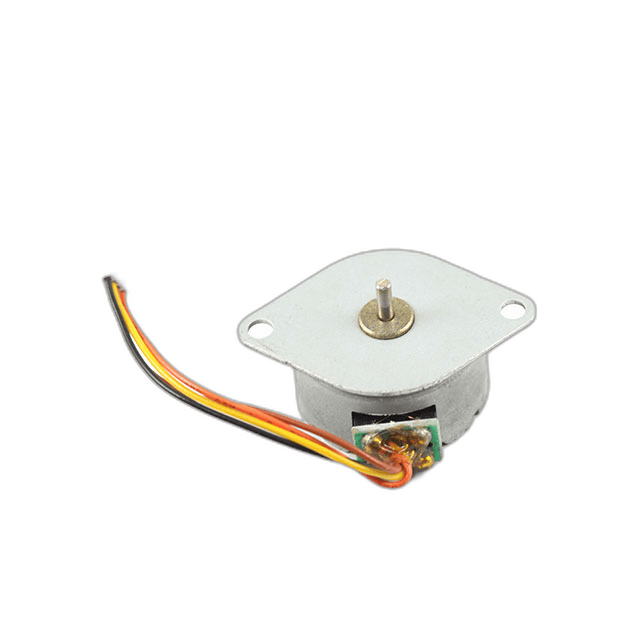

T2515

T2515

Diameter 25
Height 15
Step Angle 15
Drive Voltage 24
Rated Current/Phase 0.35
Drive Mode 2-2 bipolar

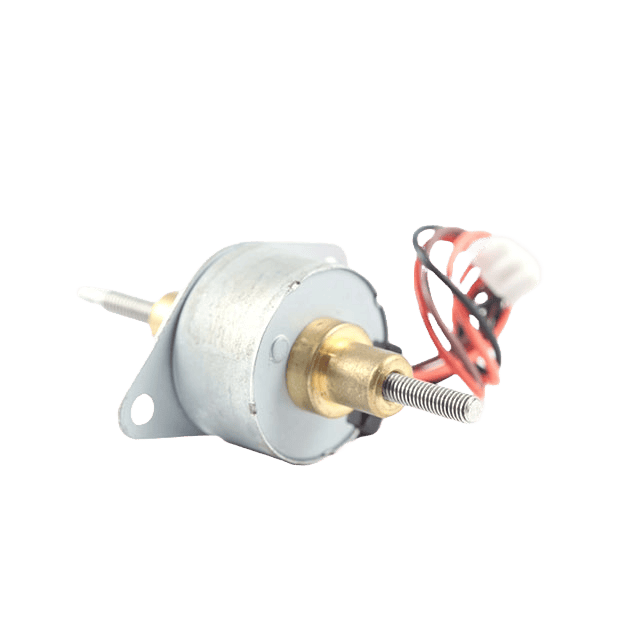

T2515L

T2515L

Diameter 25
Height 67
Step Angle 15
Drive Voltage 24
Rated Current/Phase -
Drive Mode 2-2 bipolar
T3508

T3508

Diameter 35
Height 9.5
Step Angle 7.5
Drive Voltage 5
Rated Current/Phase 0.13
Drive Mode 2-2 bipolar

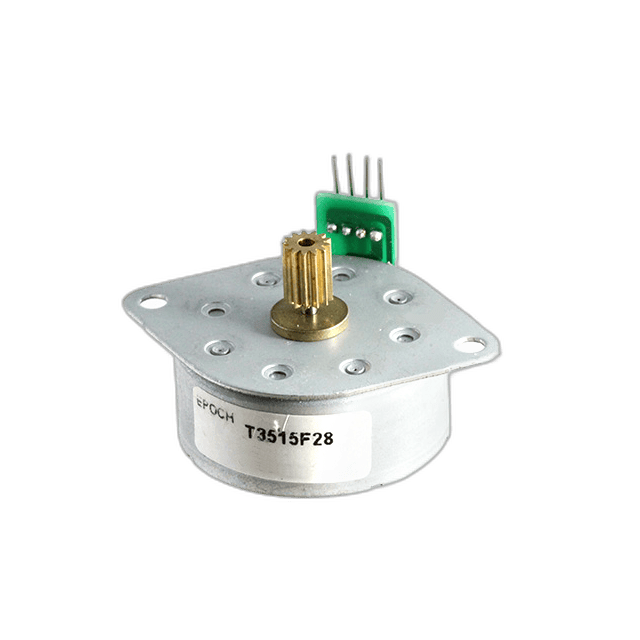

T3515

T3515

Diameter 35
Height 16
Step Angle 7.5
Drive Voltage 24
Rated Current/Phase 0.75
Drive Mode 2-2 bipolar

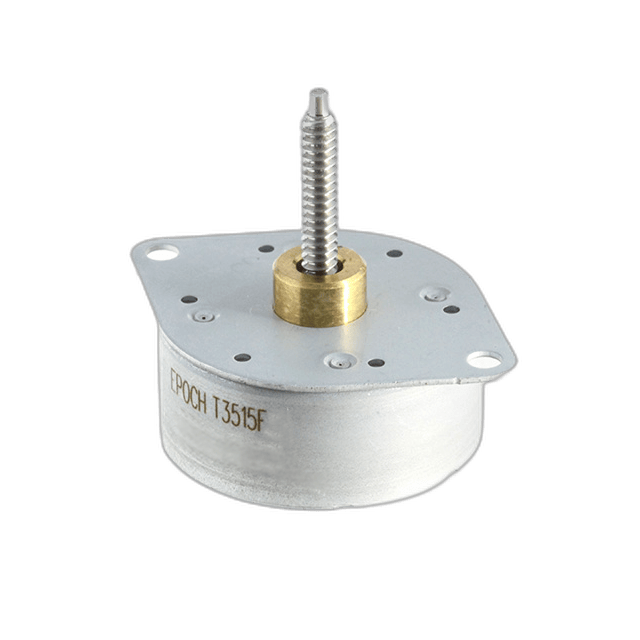

T3515L

T3515L

Diameter 35
Height 40.7
Step Angle 3.75
Drive Voltage 12
Rated Current/Phase 0.6
Drive Mode 2-2 bipolar

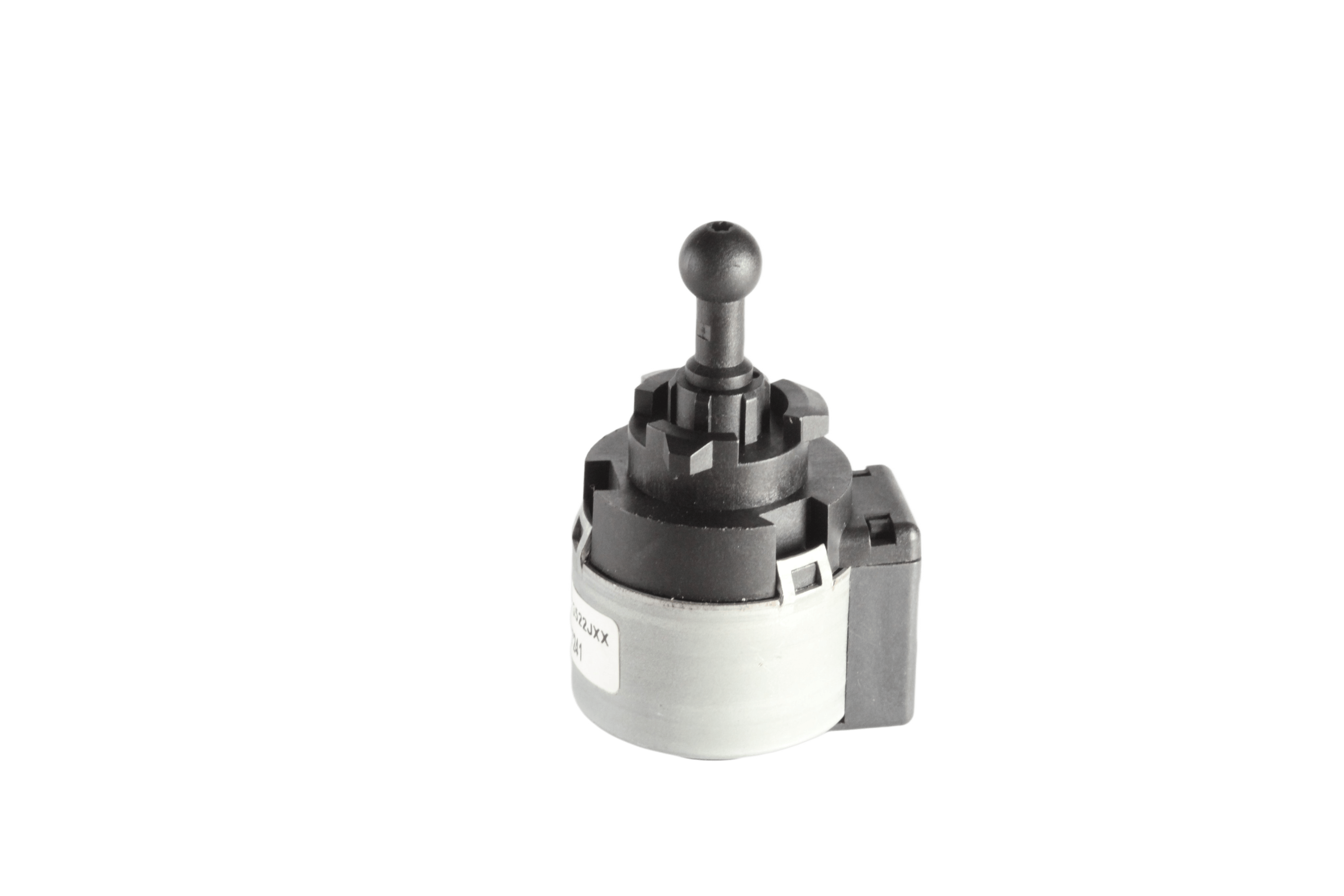

T3522

T3522

Diameter 35
Height 48
Step Angle 15
Drive Voltage 12
Rated Current/Phase 0.45
Drive Mode 2-2 bipolar

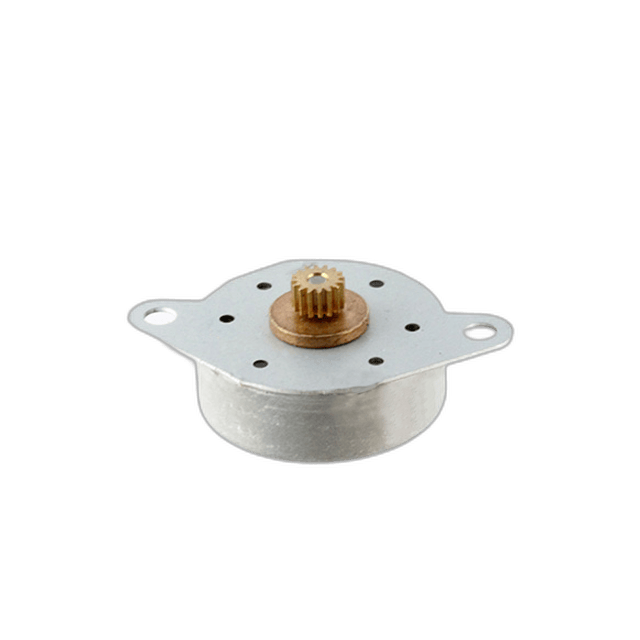

T4216

T4216

Diameter 42
Height 16.05
Step Angle 7.5
Drive Voltage 24
Rated Current/Phase 0.6
Drive Mode 2-2 bipolar

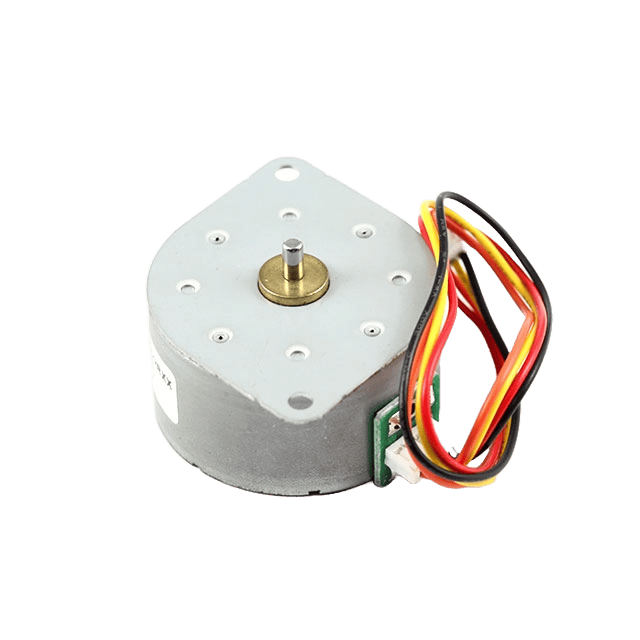

T4222

T4222

Diameter 42
Height 22
Step Angle 7.5
Drive Voltage 24
Rated Current/Phase 0.6
Drive Mode 1-2 bipolar
